12.3″ Pro Dash – Universal Mount

In stock
No reviews
$999.99

Product details

  • Type Digital Dash
  • Vendor Digital Dash EFI
  • SKU Dash-12-PRO-Uni-Mount

Documentation

  • Installation Guide Link
  • User Manual Link
Description Reviews (0)

Build Time: Up to 6 Weeks

The DD-EFI 12.3″ Widescreen Digital Dash is the first fully Plug-N-Play display designed for use with any MegaSquirt-equipped vehicle. Featuring a 12.3″ ultra-wide, high-resolution screen, it delivers expansive space for custom dashboard layouts in a compact, all-in-one enclosure.

Internal I/O Module

  • 7 Digital Inputs (e.g., Turn Signals, High Beam)

  • 5 Analog Inputs (e.g., Oil Pressure, TPS)

  • 1 Fuel Level Input

  • 2 PWM Outputs

  • 2 Speed Inputs

CanBus Communication

  • Seamless interface with MegaSquirt ECUs

  • I/O expansion includes 5 additional sensors, fuel level input, 7 digital inputs, 2 PWM outputs, 2 speed inputs

Built-in GPS Module

  • Real-time vehicle speed

  • Latitude/Longitude tracking

  • Fuel economy, trip meter, odometer

Software & Storage

  • Full version of TunerStudio for in-dash tuning

  • MegaLogViewer and AnyDesk pre-installed

  • 32GB internal storage for automatic datalogging

  • Auto-save of tune files

  • Configurable sleep mode and delayed shutdown (default 60 min)

What’s Included

  • DD-EFI 12.3″ Digital Dash

  • Full-color LCD screen

  • Internal GPS

  • 32GB internal storage

  • Universal mount with 4 metal-threaded bosses

  • Power supply wiring

  • CANBus – H/L to MegaSquirt ECU

  • Pre-installed software: TunerStudio, MegaLogViewer, AnyDesk

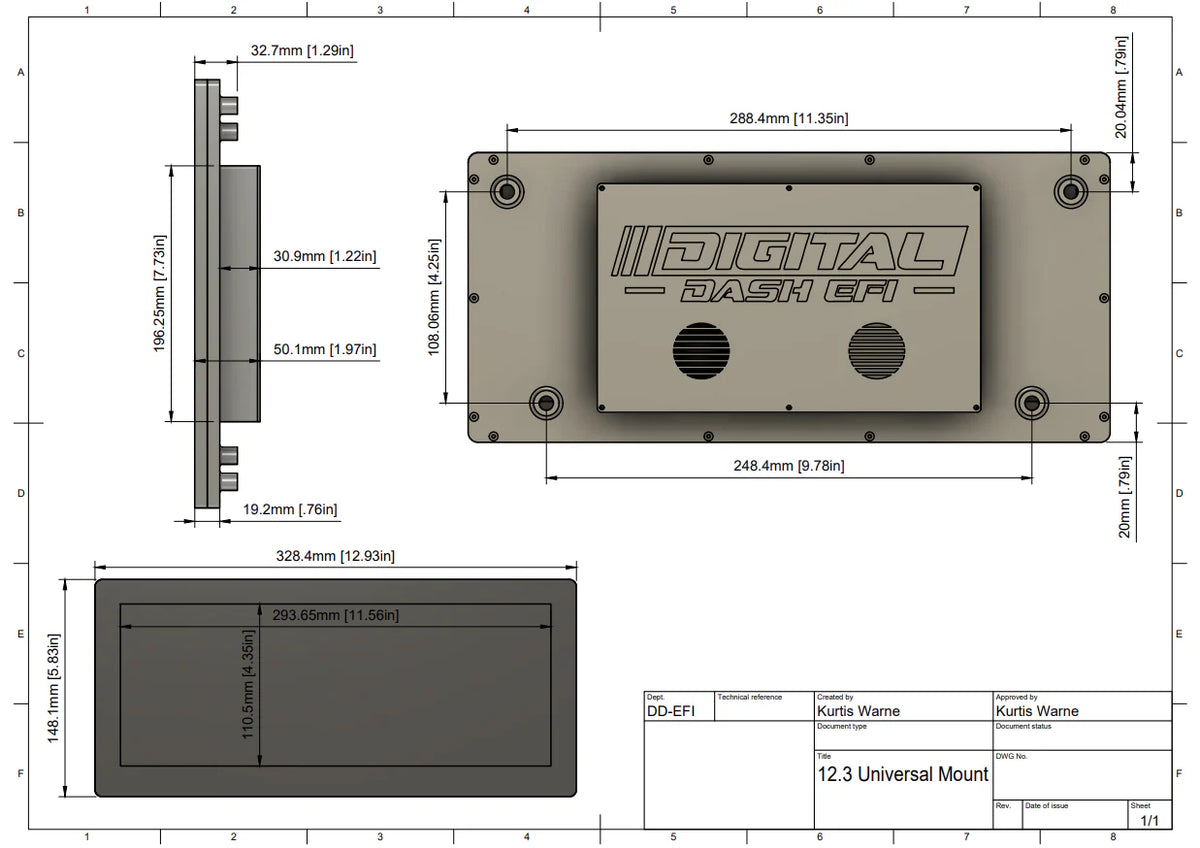

Digital Dash Dimensions

  • 12.3″ Surround: 5.85″ (H) × 12.93″ (W)

  • Display Area: 4.35″ (H) × 11.56″ (W)

  • DD-EFI Computer: 5.125″ (H) × 7.73″ (W) × 1.22″ (D)

  • Overall Depth: 2″
